Importance of measuring Turbidity
The beer turbidity parameter is used for predicting the packaged product’s shelf life. Besides, the visual experience of your beverage is one of the most important acceptance criteria for consumers.
Haffmans' in-line and laboratory solutions will help you to keep your turbidity parameters consistent during and after production and improve the appearance of your product.
Benefits
- Measuring range up to 500 EBC/34,600 ASBC
-
WHERE TURBIDITY CAN BE MONITORED?
-
BREWHOUSE
- Lauter tun
- Whirlpool
COLD BLOCK
- After wort cooling before fermentation
- From storage tank before filtration
- After filtration
- From bright beer tank
- Before the filler

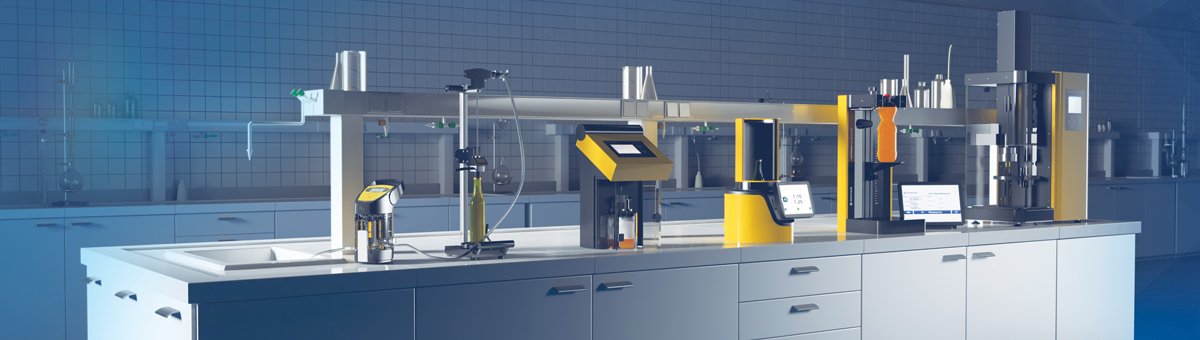

LABORATORY
- Final quality control of packaged products
-
TURBIDITY MEASURING WITH USE OF LASER TECHNOLOGY
-
Our measurement principle for turbidity is based on detecting light scattered by particles in the liquid and follows the MEBAK (Mitteleuropäische Brautechnische Analysekommission) recommendation.
Particles smaller than 1 μm, such as proteins, mainly cause the light to be scattered under 90°. This is measured with our 90° sensor. Particles larger than 1 μm, such as diatomaceous earth, yeast, and fruit pulp mainly cause the light to scatter forward. This is measured by our 25° sensor.
DOWNLOADS
| Title | Download PDF | |
| Product Overview Brochure | Haffmans Quality Control Equipment |
Download |
RELATED PRODUCTS
HAFFMANS IN-LINE TURBIDITY METER - OPTHAZE-I
The Haffmans in-line turbidity meter measures the scattered light caused by particles and incorporates the latest standards from MEBAK.
TURBIDITY METER - HAFFMANS VOS ROTA 2.0
Easy-to-use and reliable instrument to measure turbidity during production and after filling.
