TOTAL SOLUTIONS FOR HIGH GRAVITY BREWING
High Gravity Brewing can boost a brewery’s capacity considerably, without having to invest in brewing house, tank or filter capacity. The idea here is to make and ferment worts with a high original wort content.
A carbonating and mixing unit is then used to set the parameters desired, such as original wort, CO2 and alcohol content shortly before bottling. The brewing house also needs less water to make the wort, so less energy is needed for heating, boiling and cooling purposes.
Pentair’s HGB solution in its maximum configuration consists of:
- Beer Membrane Filtration
- Water Deaeration
- Deaerated water distribution & Storage
- Carbonating and Blending
Pentair offers these compact systems both on a standalone basis or as a complete solution, including all components required. Combined with an integrated automation solution, the process becomes more reliable and easily controlled.
Benefits
- All process stages combined in single units
- Optimum process and product monitoring
- Plug & play interface
- Reduced costs while increasing productivity
- Total one-stop concept
- Integrated fully automatic formula management
- Fully automatic CIP capable
Pentair High Gravity Brewing Technology
Pentair's High Gravity Brewing (HGB) Technology allows you to boost your brewery's capacity considerably and offer a variety of products without having to invest in brewing house, tank or filter capacity.
Pentair High Gravity Brewing Technology
Pentair's High Gravity Brewing (HGB) Technology allows you to boost your brewery's capacity considerably and offer a variety of products without having to invest in brewing house, tank or filter capacity.
PENTAIR's HGB TECHNOLOGY
BEER MEMBRANE FILTRATION SYSTEM
A BMF makes use of proprietary membrane technology owned by Pentair. This membrane fiber technology has several advantages compared to the use of diatomaceous earth filters: beer aging is strongly reduced and beer quality is consistent. Besides the use of membranes is sustainable and environmentally-friendly.
WATER DEAERATION
The Water Deaeration System WDS is based on our long experience in the area of gas/liquid stripping technology resulting in a highly efficient removal of air.
DEAERATED WATER DISTRIBUTION
Pentair Südmo's Hygienic and Aseptic Valve Technology is used to distribute deaerated water.
BLENDING & CARBONATION
Pentair's Carbo Blender (CBR) combines accurate control of both blending and carbonation in one unit, enabling the optimization of high gravity beer production with regard to both quantity and quality.
CARBONATION
The premium version, the Carbo Controller (CCR) offers full and controlled dissolution of CO2 by integrated CO2 measurement and correction, without the need of an additional PLC.
CARBONATION
When it comes to carbonation, whether you are a small craft brewer or operating on larger scale, we have the right solution. Our Pinpoint Carbonator, the economical version, is more suited for smaller brewers but still offers inline carbonation.
RELATED PRODUCTS
Beer Membrane Filtration System for small and craft breweries that produce at a capacity between 30-80 hl/hr.
Turnkey filtration solution for breweries with capacity 7,000–22,000 hl/d.

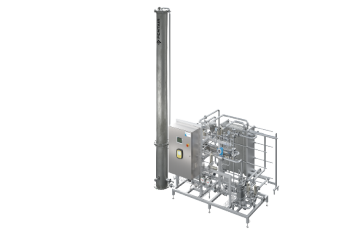

Pentair Water Deaeration System achieves very low residual dissolved oxygen content in the deaerated water.
CARBONATION CONTROL SYSTEM - CARBO CONTROLLER - CCR
The Carbo Controller works by injecting CO2 at the inlet of a dissolution tube. Combined with the reliable O2 measurement, this enables you to achieve total process control.
ENGINEERED SOLUTIONS FOR BREWERY
Innovative technologies and broad engineering experience for highly efficient and advanced beer production.
Südmo Hygienic Single Seat Valves with compact and lightweight design are ideal for controlling process or CIP fluids.
Beer Membrane Filtration System for large breweries that produce at a capacity between 200-900 hl/hr.

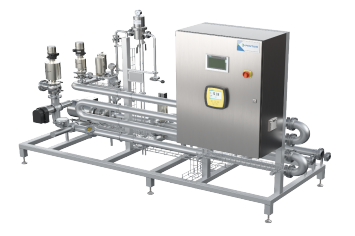

CARBONATION AND BLENDING SYSTEM - CARBO BLENDER - CBR
Pentair Haffmans’ Carbo Blender combines accurate control of both blending and carbonization in one skid-mounted unit.
Pentair Südmo Valve Manifolds offer professional design, combined with the highest processing quality and permit optimum cleaning for perfect product quality.
