Reliable Turbidity Measurement for Lab and Production

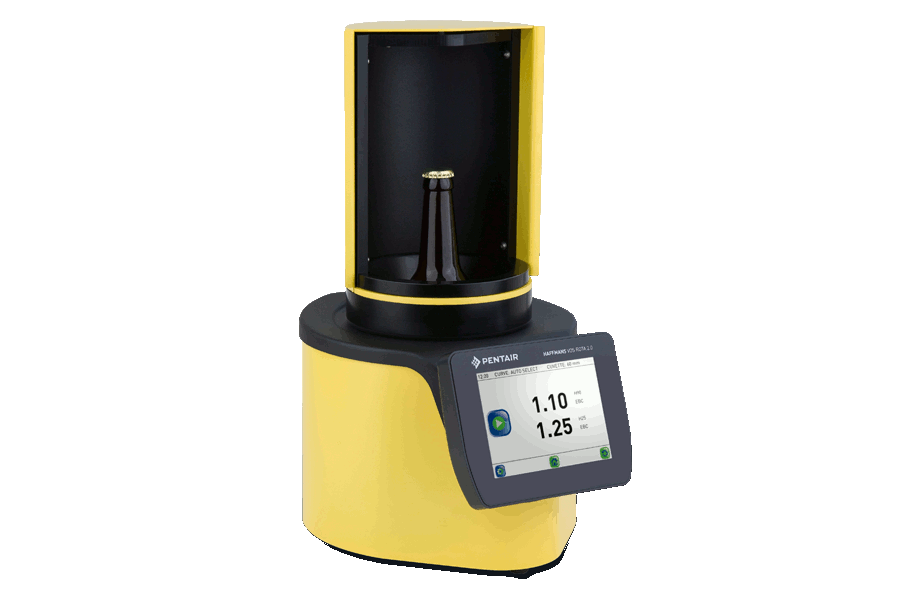

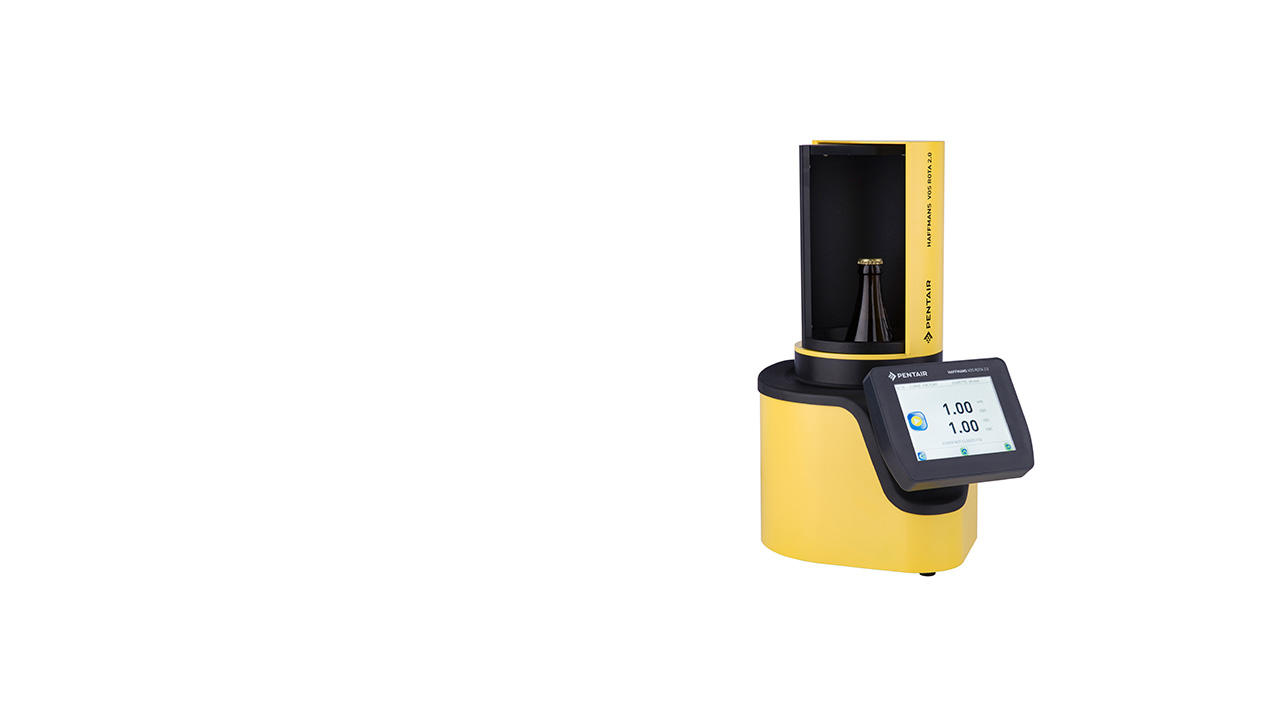

The Haffmans VOS ROTA 2.0 is a user-friendly, high-precision turbidity meter designed for use during beverage production and post-filling quality checks.
BENEFITS
- Wide measuring range: up to 500 EBC / 34,600 ASBC.
- Intuitive touchscreen interface with user-friendly software.
- Easy to clean and maintain.
- Calibratable with Formazine standard.
- Ideal for shelf-life prediction and filtration control.
-
FUNCTIONAL DESCRIPTION
-
The turbidity meter measures scattered light caused by particles using the following parameters:
- 90° measuring angle
- Red light source: 650 ± 30 nm
- Formazin calibration standard
Particles smaller than 1 µm (e.g., proteins) primarily cause scattered light and are measured at a 90° angle. Larger particles (e.g., diatomaceous earth and yeast), typically over 1 µm, cause forward-scattered light and are measured at a 25° angle.
Up to 10 calibration curves can be programmed. With product identification and memory functions, the VOS ROTA 2.0 enables full traceability of measurement data.
To perform a measurement, a sample (in a cuvette or bottle) is placed in the water-filled measuring chamber. The device automatically positions and rotates the sample, takes 100 measurements, and calculates the average value. Results can be exported to a PC and/or printed directly.
-
FIELDS OF APPLICATION
-
- Laboratory analysis.
- Filtration monitoring.
- Final product quality control.
DOWNLOADS
| Title | Download PDF | |
| Product Leaflet | Haffmans VOS ROTA 2.0 | Download |
| Product Leaflet | Haffmans VOS ROTA 2.0 (French) | Download |
| Product Leaflet | Haffmans VOS ROTA 2.0 (Portuguese) | Download |
| Product Leaflet | Haffmans VOS ROTA 2.0 (Spanish) | Download |
| Technical Documentation | Request Product-Specific Technical Documentation | Send Us Your Request |
