PRODUCT INFORMATION

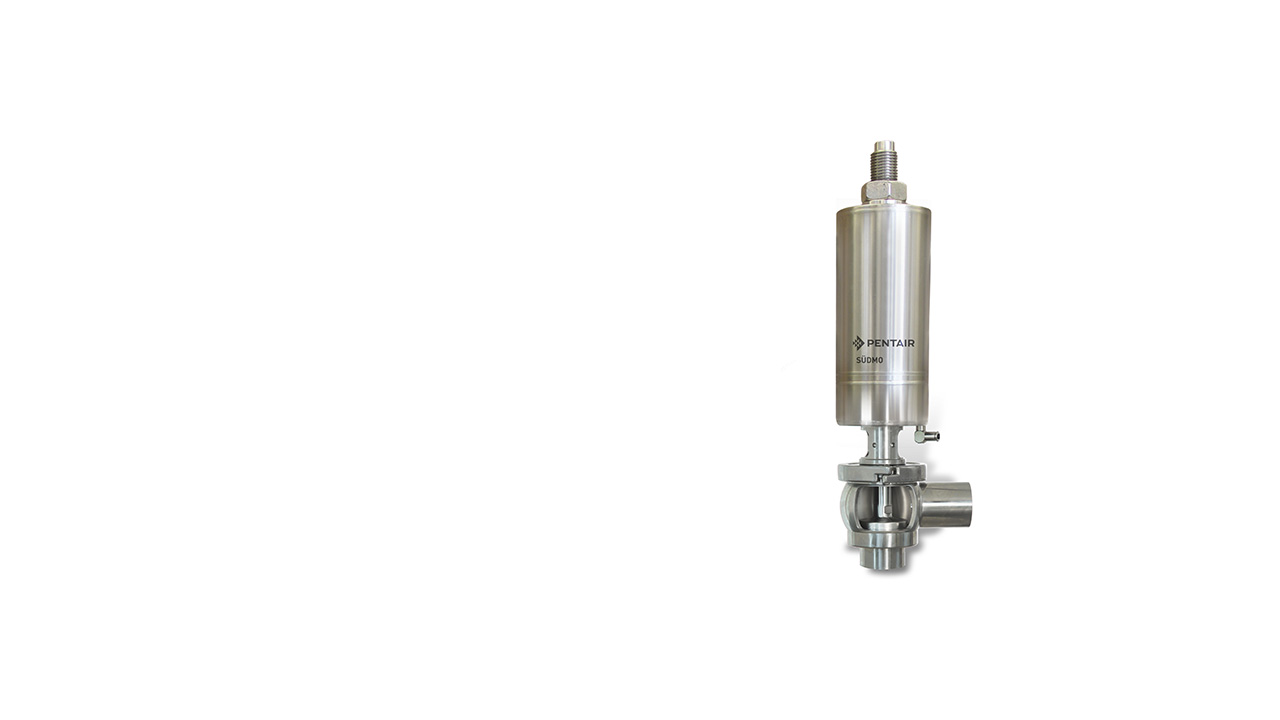

Südmo Single Seat Overflow Valves SVP Select EAF+ are equipped with adjustable set pressure actuator. Apart from the SVP Select series there are also hygienic as well as aseptic designs available.
BENEFITS
- High operating pressures - up to 10 bar (145 psi)
- Simple adjustment of set pressure
- Low hysteresis of < 0.5 bar (7 psi)
- Standard with pneumatic lifting actuator for CIP cleaning
- Easy adaption of the IntelliTop 2.0
- Standard SVP Select seal kits
- Numerous industry authorizations and certifications
-
FUNCTIONAL DESCRIPTION
-
- Single Seat Overflow Valves relieve pressure areas in cases of excessive pressure build-up in closed spaces (piping, containers, tanks).
- The output medium can be discharged or returned/directed into a closed system.
- In terms of the EC Pressure Equipment Directive 97/23/EC overflow valves are not safety-equipped parts and do not possess any type of examination certificates
- Single Seat Overflow Valves relieve pressure areas in cases of excessive pressure build-up in closed spaces (piping, containers, tanks).
-
FIELDS OF APPLICATION
-
Südmo Single Seat Overflow Valves are used in various applications of brewery, winery, dairy, distillery, beverage and food industries:
- To limit pressure on containers and tanks (e.g. CO2 overlay)
- To limit pressure on piping systems
- Protection of pumps (circulatory function)
- Prevention of backflow in piping (3-A 53-06 compliant alternative to disk check valve)
- To limit pressure on containers and tanks (e.g. CO2 overlay)
