Product Information

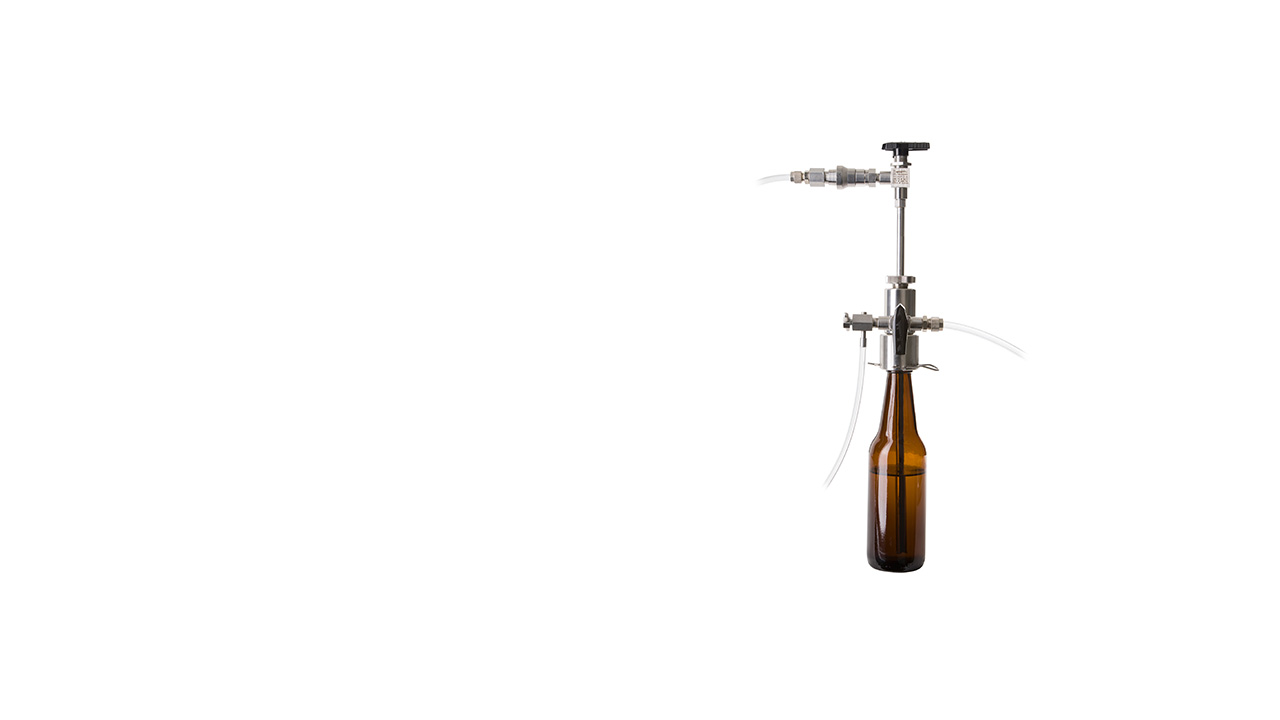

The user-friendly Haffmans Sample Bottle Filler - type SBF, is a robust instrument for sampling beer and beverages from tanks, piping or kegs, without air intake. It is particularly suited for the creation of beer foam for the Nibem Foam Stability Tester in combination with the Inpack 2000 Flasher Head and the headspace air determination of beer from bright beer tanks.
Benefits
- Perfect product control
- Air free sampling
- Cost saving - lower investment costs (one device for sampling from different sources)
-
FUNCTIONAL DESCRIPTION
-

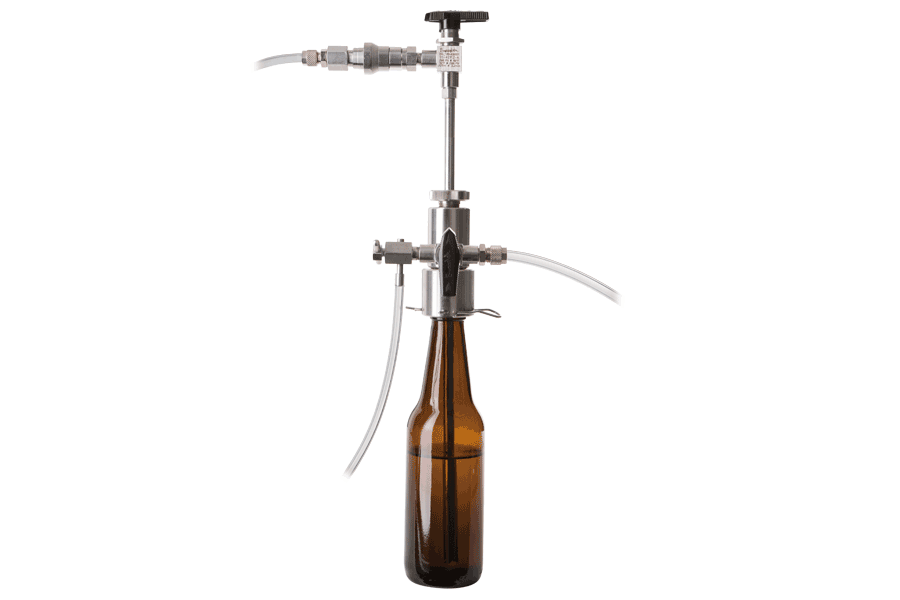

The Haffmans Sample Bottle Filler - SBF is mounted on an empty crown cork bottle. By filling the bottle with water and expelling it with carbon dioxide (CO2) or nitrogen (N2), the air is removed. The SBF is connected to a sampling point and under counter pressure, the bottle is filled without foaming. The sample can be prepared for analysis, for example, in compliance with the Nibem standards for foam quality testing, to be brought to a temperature of 20 ˚C.
-
FIELDS OF APPLICATION
-
- Laboratory operation with cans and bottles of different types and sizes
- Laboratory operation with cans and bottles of different types and sizes
Downloads
| Title | Download PDF | |
| Product leaflet |
Haffmans Sample Bottle Filler - SBF | Download |
| Product leaflet |
Haffmans Sample Bottle Filler - SBF (German) | Download |
| Product leaflet |
Haffmans Sample Bottle Filler - SBF (French) | Download |
| Product leaflet | Haffmans Sample Bottle Filler - SBF (Portuguese) | Download |
| Product leaflet | Haffmans Sample Bottle Filler - SBF (Spanish) | Download |
| Product leaflet | Haffmans Sample Bottle Filler - SBF (Russian) | Download |
| Product Overview Brochure | Haffmans Quality Control Equipment | Download |
| Technical documentation | Looking for operating instructions, installation manual, spare part list etc.? | Please, send us your request |
