PARTICULATE EMISSION MONITORS

Particles in emission outlet streams of various manufacturing processes need to be measured to meet health, safety and environmental regulations. The Goyen range of Particulate Emission Monitors such as the EMP6 and EMP7 use ISE and Triboelectric technology for emissions monitoring and broken bag detection purposes in stand-alone or networked configurations.

Interested?

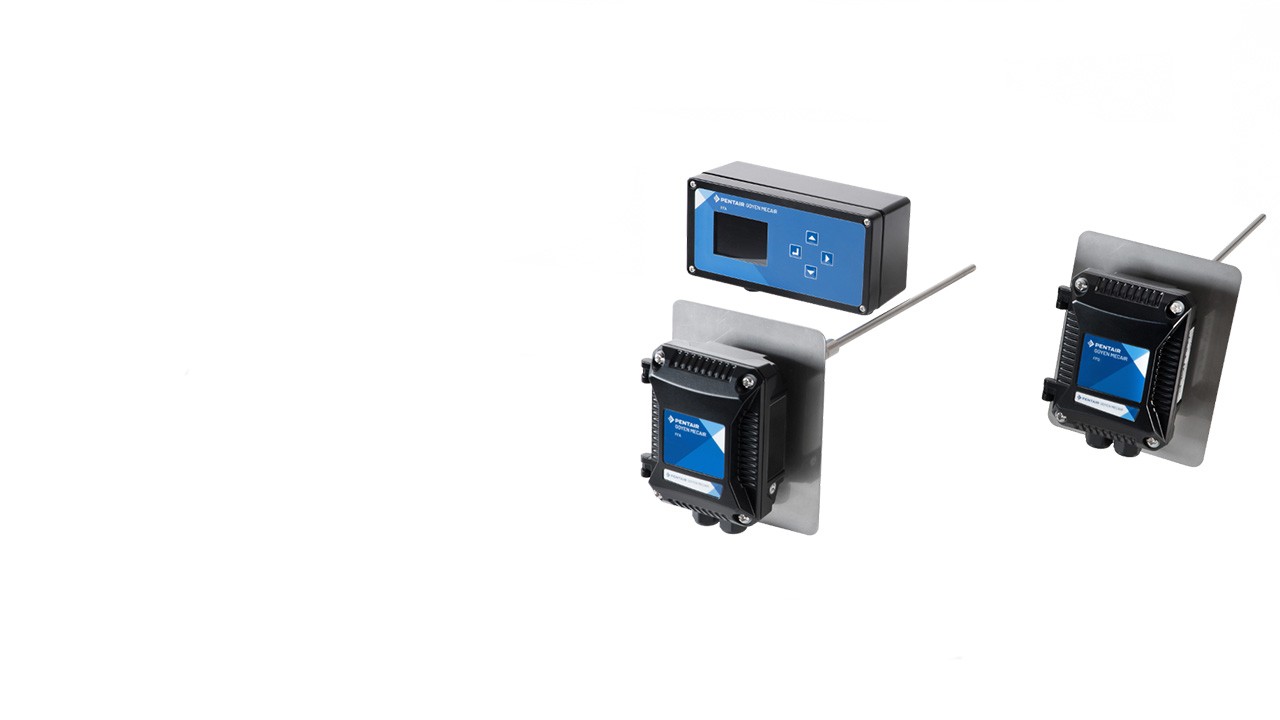

Pentair Goyen EMP6B Particulate Emission Monitor

Benefits

  • Dramatically reduce downtime
    -When interfaced into existing plant monitoring equipment
  • Better overview
    -Optional network solutions available to integrate data when multiple measuring points are used
    -A seamless interface with industry standard PLC, data logger or SCADA
  • Detects all particles regardless of composition
    -Can monitor extremely small particles, e.g. galvanising fume (∼0.1 μm)
  • Sensitive measurement
    -Due to ISE/AC coupled technology
    -Tolerates extremely high leakage of signal due to insulator bridging
  • Wide range
    -Can operate in a large range of concentrations or mass flow rates 0.01 mg/m3 to 800 mg/m3 (4 × 10−6 gr/ft3 to 0.35 gr/ft3)
  • Easy calibration
    -Calibration is automatic

FUNCTIONAL DESCRIPTION

ISE TECHNOLOGY
The EMP7 utilises ISE technology. Each particle travelling through the process develops an electrical charge. As the particle passes or impacts with the sensing element, a current is induced which is processed in EMP7 by a method called Impulse Signature Extraction (“ISE”).

ISE technology extracts the basic characteristics (the ‘signature’) of the impulsive signals induced by individual particles in the gas stream. ISE technology processes the entire signal from the sensing element, its algorithm effectively negates the potentially erroneous effects of the DC component of the signal, so ISE technology shares all the advantages of existing AC Triboelectric technology.

Made a reality by recent advances in low power digital signal processing, ISE technology is as significant a step forward now as the introduction of AC Triboelectric technology was in 1992.


TRIBOELECTRIC TECHNOLOGY
The EMP6B utilises AC Coupled Triboelectric technology. As particles travel through the process they develop a charge. This charge is transferred as the particle passes or impacts the sensing element. The resulting current is amplified, filtered,  rectified and further filtered looking only at the AC component, to give a linear representation of the concentration or mass flow rate  of the particles in the gas stream.

The reason for measuring the AC component is that compared to the DC component the electronics are more sensitive. The AC signal is substantially less affected by influences such as amplifier noise and process parameters, which includes the build- up of process dust on the sensing rod. The EMP6B remote Active Head totally filters out any 50 Hz or 60 Hz frequencies related to mains supply. The amplified signal is then sent via data cable to Control Unit for further processing and display.

MOUNT
The EMP7 and EMP6 heads are typically mounted through the wall of a duct carrying the moving particles so that the probe is exposed to the particles. The gas stream often exhausts to atmosphere (such as in a stack), but these emission monitors are equally suited to detecting particles in motion in a gas stream under other conditions, for example pneumatically-conveyed or gravity-fed particles.



APPLICATIONS

Pentair Goyen’s EMP7 and EMP6 Particulate Emission Monitors are are used around the world to measure particle concentrations in various outlet gases and air streams aiming to control the dispersion of noxious substances, improve indoor air quality in workplaces, or prevent harmful dust emissions to be purged into the atmosphere.





These Particulate Emission Monitors are used in all types of industries and processes, including:
  • cement production
  • mining applications
  • silo and conyeyor systems
  • bulk goods handling
  • general industrial dust collection
  • improving indoor workplace air quality
  • preventing harmful emissions


SERVICE

All Pentair products are backed by an experienced team of engineers able to provide unmatched levels of customer support with technical services and practical tools. The award-winning (ABA100) GOCO is a diagnostic and system modelling service for your reverse pulse filter cleaning systems. As it can optimize system parameters at the touch of a button, GOCO takes all guesswork out of engineering filter cleaning systems. It also ensures optimum performance and extends the lifespan of your filters. Simply contact us to get started with GOCO.



APPROVALS

EMP7
  • IP66/NEMA4

EMP6B
  • ATEX II 3 D&G and MACT compliant
  • IP54
