PRODUCT INFORMATION
Pentair’s direct lift valves, 2-way valves, and 3-way valves are the durable and dependable choice for controlling the flow of gases, fuels, light oils, water, and air. The Goyen and Mecair valves suit hydraulic and pneumatic operation, and cover a wide pressure and flow range.
Membrane Valves
Benefits
- Optimize your process and gain reliable control of liquids and gases
- Industrial solenoid valves: direct lift, pilot operated, 2-way, and 3-way
- Designed for high flow rates and very high pressures (370 psi/2550 kPa)
- Durable and reliable: machined from brass
- Available with electroless nickel plating to improve corrosion resistance
- Suitable for a wide range of operating temperatures
- Dependable choice for any industrial operation
-
FUNCTIONAL DESCRIPTION
-

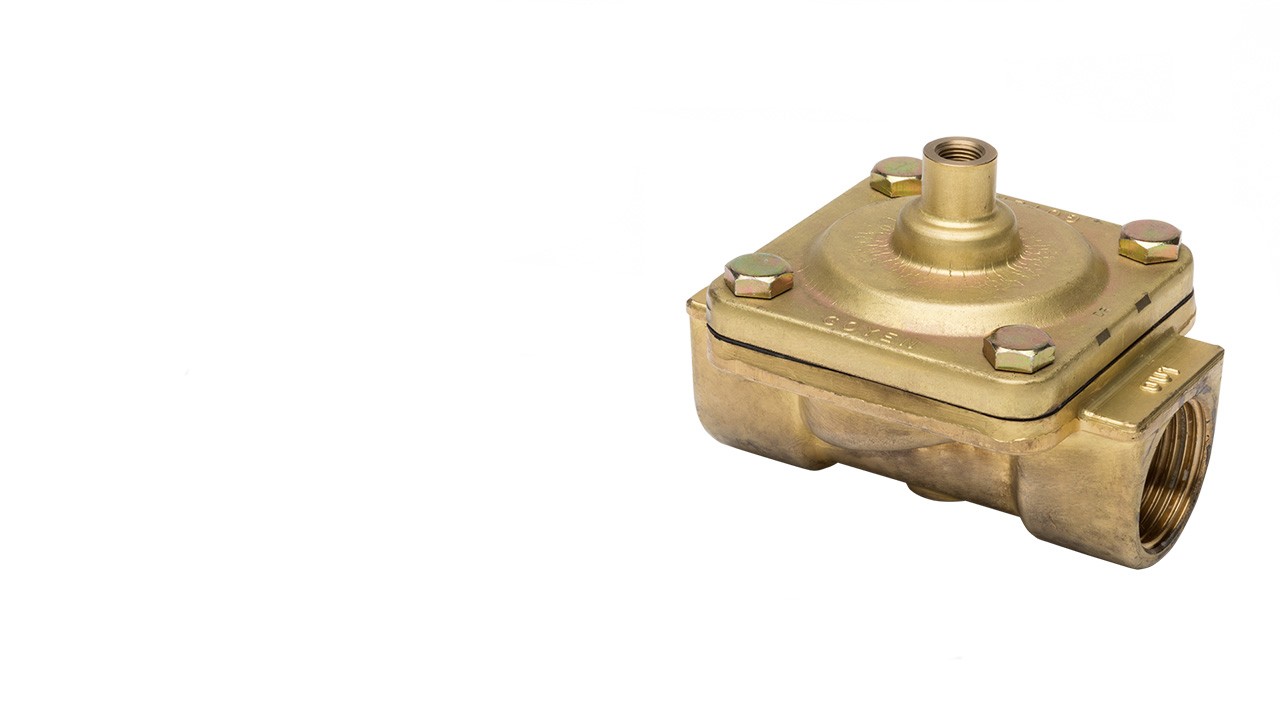

Pentair’s Goyen and Mecair industrial valves are machined from brass and available with additional electroless nickel plating. The wide product range covers all types of industry,and includes valves designed for very high pressures (up to 370 psi/2550 kPa) and high flow rates.
Solenoid valves come in two types: Direct Lift and Pilot Operated. Both types are available in normally open and normally closed configuration.
DIRECT LIFT VALVES
A plunger directly opens or closes the valve as the sealing disc is attached to the plunger. The valve will operate from zero pressure differential to its maximum rated pressure.PILOT OPERATED VALVES
A diaphragm or piston provides the seal for the main valve orifice. Pilot operated valves are designed to handle much greater flow or pressure requirements than direct-lift valves. Two designs are available; a floating diaphragm requiring a small pressure drop across the main valve orifice to remain in the open position, and a coupled diaphragm which is kept open mechanically through direct connection with the solenoid plunger. This coupled design will operate with zero pressure drop across the main valve orifice.2-WAY AND 3-WAY VALVES
Two-way valves have one inlet port and one outlet port and are used as a simple on/off valve to control the flow of liquids or gases. Three-way valves enable the pressure application and release from closed-end systems, such as in air-piloted operation of hydraulic or pneumatic control valves, or with single-acting cylinders.Pentair’s industrial valves may generally be installed in any orientation, although it is preferable to mount the solenoid above the valve to minimize the ingress of dirt and foreign matter into the ferrule tube. Care should be taken not to use the solenoids cover as a lever when installing or removing the valve. For reliable operation, ensure the supply voltage is no more than 15 percent above or below the rated solenoid voltage.
-
APPLICATIONS
-
Designed to control the flow of liquids or gases, Pentair industrial valves are used all over the world in a wide range of industries and for a wide range of pressure and flow rates.
-
SERVICE
-
All Pentair products are backed by an experienced team of engineers able to provide unmatched levels of customer support with technical services and practical tools. The award-winning (ABA100) GOCO is a diagnostic and system modelling service for your reverse pulse filter cleaning systems. As it can optimize system parameters at the touch of a button, GOCO takes all guesswork out of engineering filter cleaning systems. It also ensures optimum performance and extends the lifespan of your filters. Simply contact us to get started with GOCO.
-
APPROVALS
-
- ISO 9001 Quallity Management System
- Watermark (upon request)
- UL (upon request)
- CE
- RoHS
DOWNLOADS
| Product type | Download pdf | |
| Brochure | PENTAIR GOYEN INDUSTRIAL SOLENOID VALVES | Download |
