Goyen Mecair

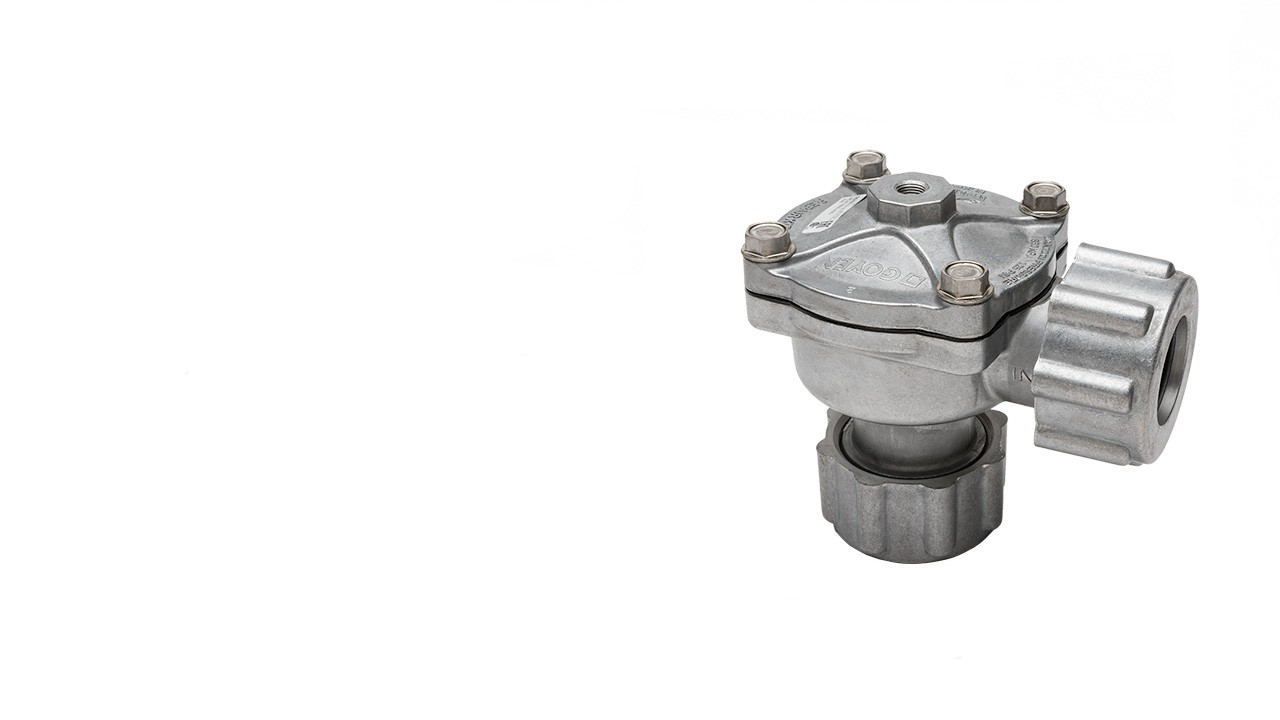

DRESSER NUT VALVES

The Goyen DD-series and Mecair 300 series set the global standard in high-performance reverse pulse jet valves with dresser nut connection ports. These diaphragm valves are specifically designed for the filter cleaning of dust collectors and baghouses in reverse pulse jet systems. These include all bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.

Interested?

Dresser Nut Valve RCA45DD
Dresser Nut Valve RCA25DD4
Dresser Nut Valve VEM306

Benefits

  • Ready for use in any dust collector design
    -For noxious substance control and environmental dust management
  • Cost savings
    -Increased pulse efficiency, reduced energy consumption
    -Durable materials enhance lifespan
    -Longer filter life, lower dust collector OPEX
  • Compliance
    -With environmental and health & safety regulations
  • Ease of installation
    -Secure and fast piping assembly with 90° dresser nut connections

FUNCTIONAL DESCRIPTION

With the Goyen and Mecair brands, Pentair is the global market leader in the design and manufacturing of high-performance reverse pulse jet valves. Our dresser nut valves are manufactured from aluminum in a high-pressure die cast process.
The Goyen DD-series is designed to operate with air pressures from 0.3 to 8.6 bar, while the Mecair 300 series ranges from 0.5 to 7.5 bar. These dresser nut valves can be orientated in any position other than upside down or inverted.

The temperature range of the dresser nut valves depends on the chosen model and diaphragm:
  • Nitrile diaphragms: -40°C (-40°F) to 82°C (179.6°F)
  • Viton diaphragms: -29°C (-20.2°F) to 232°C (449.6°F)
  • Selected models with diaphragms for temperatures as low as -60°C (-76°F)
  • Springless diaphragm design available

The Mecair design assures an extremely fast opening and closing time and high flow rates. These valves are anodised for extra corrosion protection, with bolts and screws in stainless steel. They are available with integrated solenoid pilots or remote pneumatic connections.


APPLICATIONS

The Goyen DD series and Mecair 300 series are high-performance diaphragm valves with dresser nut connections for reverse pulse jet systems in dust collectors. They are used around the world to frequently clean the filters in systems aiming to control the dispersion of noxious substances, improve indoor air quality in workplaces, or prevent harmful dust emissions.




The tough and reliable construction of these Goyen and Mecair dresser nut valves make them suitable for use in dust management systems in all types of industries and processes, including:
  • cement production
  • mining applications
  • silo and conveyor systems, bulk goods handling
  • general industrial dust collection
  • improving indoor workplace air quality
  • preventing harmful emissions
  • power industry: protecting boilers and gas turbines from dust particles


SERVICE

All Pentair products are backed by an experienced team of engineers able to provide unmatched levels of customer support with technical services and practical tools. The award-winning (ABA100) GOCO is a diagnostic and system modelling service for your reverse pulse filter cleaning systems. As it can optimize system parameters at the touch of a button, GOCO takes all guesswork out of engineering filter cleaning systems. It also ensures optimum performance and extends the lifespan of your filters. Simply contact us to get started with GOCO.




APPROVALS

Approvals (Goyen)
  • Atex II 2D Mechanical (RCA only)
  • CSA (C, US) [C22.2 No 139–10 and UL 429:2009] (CA & RCA)
  • C-Tick (CA)
  • EMC 2004/108/EC (CA)
  • Low Voltage Directive 2006/95/EC (CA)
  • The RCAC2XDD4 meets the requirements of the European Low Voltage Directive 2006/95/ EC, when fitted with the RCA3PV pilot
Approvals (Mecair)
  • ATEX II 3 D (94/9/CE); when used with the approved integrated solenoid pilot model VEM+PV 24V/DCX (solenoid coil is 24 V-DC/18 W and DIN connector in conformity with the ATEX Directive 94/9/CE) (PLG11-ATEX).
  • ATEX II 2 GD when mounted with PXA Pilot or CXD Enclosure (94/9/CE).

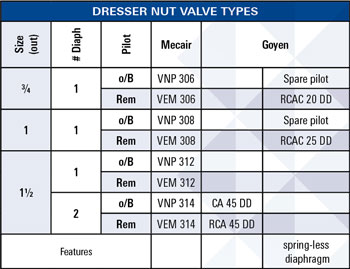

PRODUCT TYPE OVERVIEW

The overview shows different product types belonging to the product family Dresser Nut Valves.
