Goyen Mecair

Pilot valves

To actuate the valves in your dust collector filter cleaning system, you need solonoid pilot valves that operate quickly and without fail, anytime and every time.

Interested?

Pilot Valve SB2

Benefits

  • Tough design
    -Strong materials: manufactured from pressure die cast aluminum or brass
  • Pressure proof
    -Designed to operate with compressed air manifold pressures ranging from: -  30kPa (5psi) to 860kPa (125psi) for Goyen product range
    -0.5 bar to 7.5 bar for Mecair product range
  • Temperature proof
    -Designed for operational temperatures of -40 °C (-40°F) to 82°C (179.6°F).
  • Explosion-proof pilot models available
    -Also in accordance with the ATEX Directive 94/9/CE, Zone 22 (Dust).

FUNCTIONAL DESCRIPTION

Goyen solenoid pilot valves have pilot bodies and covers manufactured from pressure die cast aluminum. They are designed to operate with compressed air manifold pressures ranging from 30kPa (5psi) to 860kPa (125psi).

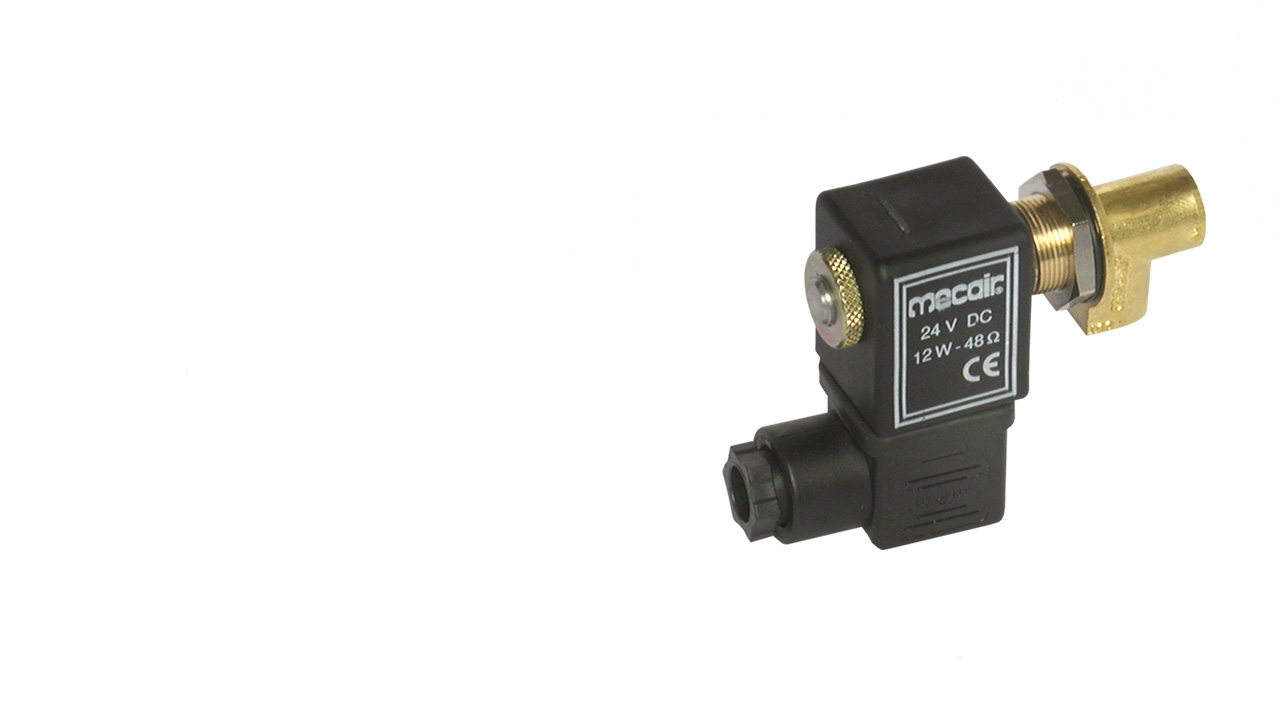

Mecair single remote solenoid pilot valves are machined from brass. They are designed to operate with compressed air manifold pressures ranging from 0.5 bar to 7.5 bar.


Pentair’s industrial valves may generally be installed in any orientation, although it is preferable to mount the solenoid above the valve to minimize the ingress of dirt and foreign matter into the ferrule tube. Care should be taken not to use the solenoids cover as a lever when installing or removing the valve. For reliable operation, ensure the supply voltage is no more than 15 percent above or below the rated solenoid voltage.


APPLICATIONS

Pentair’s Goyen and Mecair solenoid pilot valves are specifically designed for the reverse pulse jet filter cleaning of dust collectors and baghouses. These include all variations of bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.
Their tough and reliable construction makes them perfectly suited for both noxious and environmental dust collection applications in a wide range of industries, including:
  • Cement dust collection
  • Mining dust collection
  • Silo/bulk materials handling dust collection
  • Industrial dust collection
  • Power industry: protection of boilers and gas turbine intake filter systems

SERVICE

All Pentair products are backed by an experienced team of engineers able to provide unmatched levels of customer support with technical services and practical tools. The award-winning (ABA100) GOCO is a diagnostic and system modelling service for your reverse pulse filter cleaning systems. As it can optimize system parameters at the touch of a button, GOCO takes all guesswork out of engineering filter cleaning systems. It also ensures optimum performance and extends the lifespan of your filters. Simply contact us to get started with GOCO.



APPROVALS

• ATEX Directive 94/9/CE
• Zone 22 (Dust)
• Mecair PR Pilot Valve (upon request)


product type overview

The overview shows different configurations of Pilot Valves.
