Goyen Mecair

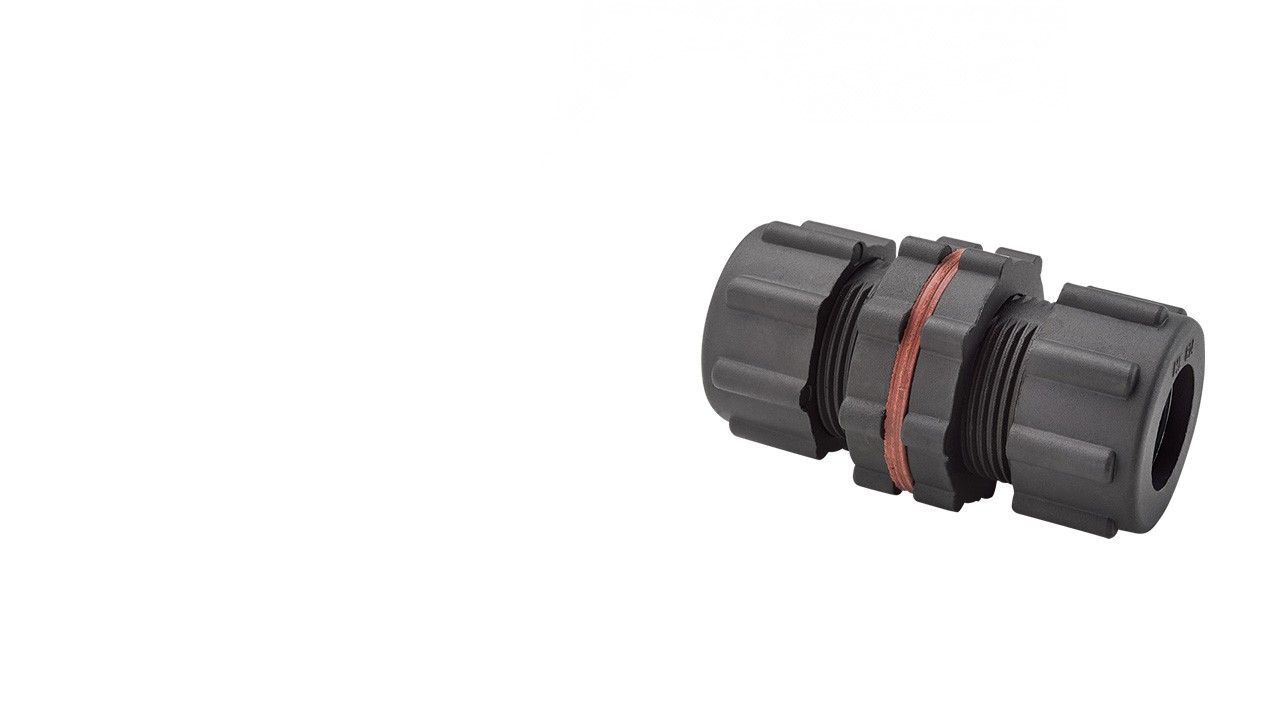

BULKHEAD CONNECTORS

Our state-of-the-art Goyen and Mecair bulkhead connectors offer peace of mind when it comes to safe and leakage-free piping connections in the reverse pulse jet air cleaning of dust collection systems.

Interested?

Bulkhead Connector ptd308
Bulkhead Connector pts306
Tools ch16-ch06

Benefits

  • Quick and easy installation of blowtubes and other piping
  • Leakage-free: provides long-lasting seal to prevent air losses
  • Prevents contamination by separating clean and dirty air streams
  • Safe and reliable: made from die cast aluminium with anodized coating
  • Broad temperature range (NBR: -30°C/+100°C or silicon: -60°C/+200°C)
  • Fits any system: available sizes ranging from 20mm [3/4”] to 45mm [1.5”]

FUNCTIONAL DESCRIPTION

Pentair’s Goyen and Mecair ranges of bulkhead fittings are designed to reliably connect the valve to the blowtube through the wall of the filter (bulkhead). Making quick and easy connections to unthreaded blowtubes, without need for welding or any additional fittings, allows for significant time and material savings.



Two versions of the bulkhead compression fittings are available:
  • PTO: two-piece tube connection fittings
  • PTS:  through tube connection fittings

Use smooth, unthreaded pipes for connecting the header tank and filter blowtubes to the valve. Then tighten the quick-fit connections with the proper size CH wrench (for nut rings) and PH (for bolts).



APPLICATIONS

Pentair’s Goyen and Mecair bulkhead connector are specifically designed for the reverse pulse jet filter cleaning of dust collectors and baghouses. These include all variations of bag filters, cartridge filters, envelope filters, ceramic filters and sintered metal fiber filters.
All Goyen and Mecair products are backed by an experienced and dedicated team of engineers providing levels of technical support unmatched in the industry.






Our bulkhead connectors are suitable for both noxious and environmental dust collection applications in a wide range of industries, including:
  • Cement dust collection
  • Mining dust collection
  • Silo/bulk materials handling dust collection
  • Industrial dust collection
  • Power industry: protection of boilers and gas turbine intake filter systems


SERVICE

All Pentair products are backed by an experienced team of engineers able to provide unmatched levels of customer support with technical services and practical tools. The award-winning (ABA100) GOCO is a diagnostic and system modelling service for your reverse pulse filter cleaning systems. As it can optimize system parameters at the touch of a button, GOCO takes all guesswork out of engineering filter cleaning systems. It also ensures optimum performance and extends the lifespan of your filters. Simply contact us to get started with GOCO.

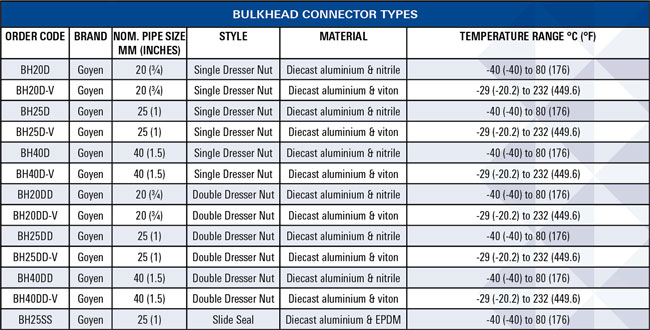

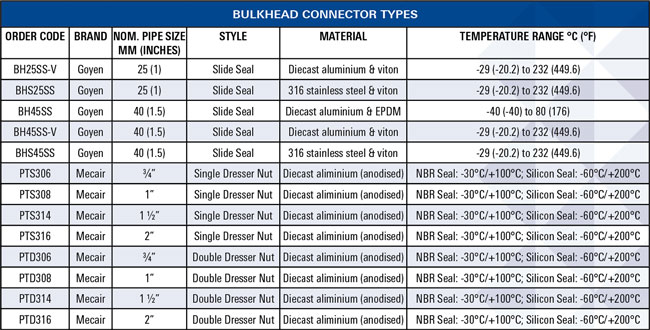

PRODUCT TYPE OVERVIEW

downloads

product type

Brochure
PENTAIR GOYEN BULKHEAD CONNECTORS
Brochure
PENTAIR MECAIR BULKHEAD CONNECTORS

pdf

Brochure
PENTAIR GOYEN BULKHEAD CONNECTORS
Brochure
PENTAIR MECAIR BULKHEAD CONNECTORS
